LIV-212
  • LIV-212
产品大图

产品介绍

产品特点LIV-212为外置三分频线阵列远程音箱,高频中频低频都是选择表现力优质钕磁单元,模块之间的角度可以进行非常精确的调整,以确保高保真的音质和动态效果。都可以用于垂直线阵吊挂或者堆放。垂直线阵吊挂时最多可以吊挂16只。为保证LIV系列能在最大SPL时也能拥有完美音质和出色的稳定性,

建议应用型流动演出及室内外固定安装场地、体育馆、多功能厅、酒吧,演艺吧等场所……

Features

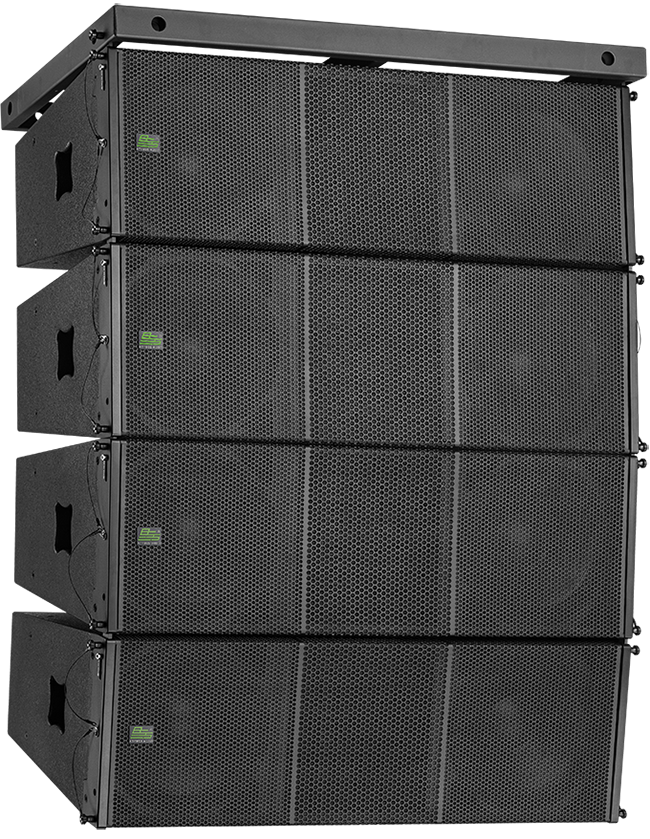

The LIV-212 is an external 3-way line array long-throw loudspeaker engineered for superior long-distance sound projection. It adopts high-performance neodymium magnetic transducers for the high, mid and low frequency bands respectively, delivering exceptional sonic expression across the entire frequency spectrum.
The inter-module angle supports ultra-precise adjustment, guaranteeing hi-fi sound quality and robust dynamic performance. This loudspeaker is compatible with both vertical line array rigging and ground stacking deployment. When suspended in a vertical line array configuration, up to 16 units can be rigged together for large-scale sound coverage.
To ensure the LIV series maintains flawless audio reproduction and outstanding stability even at maximum SPL (Sound Pressure Level),...

Applications

Medium and large-scale mobile performances, indoor and outdoor fixed installation venues, stadiums, multi-function halls, bars, live performance bars and other premium venues.


产品参数

ModelLIV-212
Type:                                                     Dual 12''  Line Array Loudspeaker System
Frequency Response(±3dB):              45 Hz-20 kHz
Drivers HF:                                             2 x 1.75''Neodymium
Rated Power HF(RMS/Peak):                120/ 240 W
Sensitivity(1m/1w) HF:                         105 dB
Nominal impedance HF:                           8 ohms
Drivers MF:                                             2 x 6.5''Neodymium
Rated Power MF(RMS/Peak):               200/400 W
Sensitivity(1m/1w) MF:                        95 dB
Nominal impedance MF                           8 ohms
Drivers LF:                                             2 x 12''Neodymium
Rated Power LF(RMS/Peak):                600/1200 W
Sensitivity(1m/1w) LF:                         98 dB
Nominal impedance LF                            8 ohms
Dispersion(H×V):                                 90°× 7°
Connector:                                             2×Speakon NL8'S
Pin assignment :                                      NL8: HF:+4/-4, MF:+3/-3, LF:+2/-2,
Enclosure:                                             15mm Plywood
Protective Grille :                                      Black Perforated Steel Grille
Rigging:                                                    Quick rigging with 2 pcs shackles in steel end frame;
                                                                 Secured with Ø8mm quick-release lock pins.
Finish:                                                    Black Water coating
Dim.(HxWxD):                                     350x1040x550mm
N.W:                                                      43.5Kg
