LIV-122
  • LIV-122

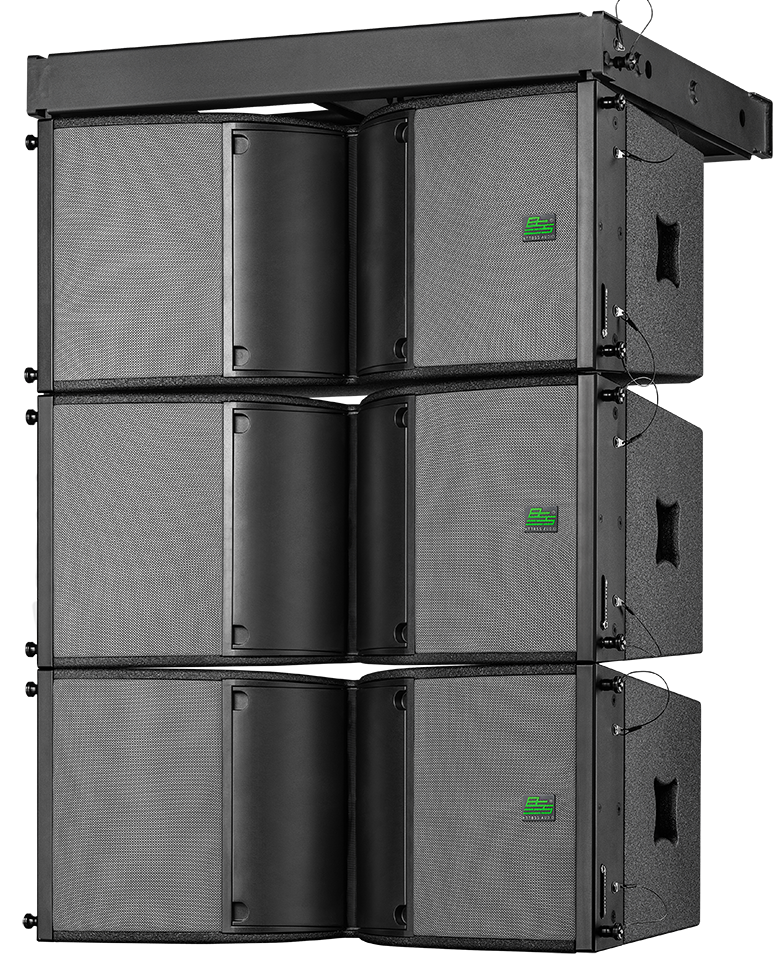

产品大图

产品介绍

产品特点:LIV-122双12寸防水线阵列扬声器本产品单个箱体提供多个覆盖角度选项,且标配预设内外置分频兼用两种选择模式。箱体采用1只2.5寸钛膜高定高音单元与2只12寸钕盆架高定进口组件低音单元,特殊调试的分频线路板,耐磨防撞的防护防水聚脲漆,灵活的铝吊件,坚固并衬有中灰色系高级透声布金属网构成一个箱体设计紧凑,新颖靓丽的外观,且应用范围极其广泛的特色产品。
应用场所:中大型流动演出及室内外固定安装场地、体育馆、多功能厅、酒吧,跳舞吧,大型高空派对房等高级场所……


Product Features

LIV-122 Dual 12-inch Waterproof Line Array Speaker
This single enclosure provides multiple coverage angle options, and comes standard with both internal and external crossover presets.
The speaker is equipped with:
  • 1 × 2.5-inch titanium diaphragm high-frequency compression driver
  • 2 × 12-inch neodymium magnet bass drivers with imported components
It features a specially tuned crossover circuit board, wear-resistant and impact-resistant polyurea waterproof coating, and flexible aluminum rigging hardware.
The sturdy front grille is lined with high-grade mid-gray acoustic cloth.
With a compact design and modern, attractive appearance, this speaker is an extremely versatile product suitable for a wide range of applications.

Applications

Medium and large-scale mobile events, indoor and outdoor fixed installations, stadiums, multi-function halls, bars, nightclubs, large high-altitude party rooms and other premium venues.


产品参数

ModelLIV-122
Type:                                            Line Array Loudspeaker System
Frequency Response(±3dB):  60 Hz-20 kHz
Drivers:                                      HF: 1 x 2.5''
                                                       LF: 2 x 12''
Rated Power(AES/Peak):         600 W / 2400 W
Sensitivity(1m/1w):                 102 dB
Max. SPL:                                 136 dB
Nominal Impedance:                8 ohms
Dispersion(H×V):                  110/70°× 90°
Connector:                              2×Speakon NL4'S
Passive :                                    NL4: +1/-1
BI-AMP:                                     NL4:+1/-1  LF: 500W 8 ohms
                                                   NL4: +2/-2  HF: 160W 8 ohms
Enclosure:                              15mm Plywood
Protective Grille :                      Black Perforated Steel Grille
Finish:                                     Black Polyurea Coating
Dim.(WxHxD):                      800x365x565mm
W:                                             46.6Kg
